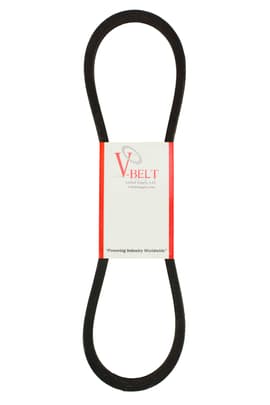

Jason A156 V-Belt
Inch Top Width 1/2 X 158 Inch Outside Measurement
Special Price
$41.97
Regular Price
$67.15
Classic v-belts are just that, classic in design and application. The classic v-belt is the most tried and true style of v-belt in the market. Originally designed to replace leather belts in a variety of industries including agriculture, facility maintenance, heating ventalation and air conditioning (HVAC) and material handling. Also known as light duty v-belts, they are designed with a 40Ì° angle to "wedge" the belt into the groove of the pulley. The greater the load, the greater the wedging action. The manufacturing process combines a rubber compound with a polyester cord to increase strength and stability. Most classic belts are also available in Kevlar.
Conventional v-belt suitable for all standard industrial applications. Standard operating temperatures ranging from -1Ì° F through 158Ì° F.
ISO:9001 Certified
Conventional v-belt suitable for all standard industrial applications. Standard operating temperatures ranging from -1Ì° F through 158Ì° F.
ISO:9001 Certified
| SKU | JS-A156 |
|---|---|
| Weight (lbs) | 0.951600 |
| Fitment | N/A |
| Top Width | 1/2" (12.7mm) |
| Inside Measuremnet | 156" (3962.4mm) |
| Outside Measurement (Approx.) | 158" (4013.2mm) |
| Thickness | 5/16" (7.9mm) |
| Certification | ISO: 9001 Certified |
| Alternative Part Number(s) | A156 Classic Belt BTQ-A156 A156 D&D Power Drive |
| Model Information | N/A |
