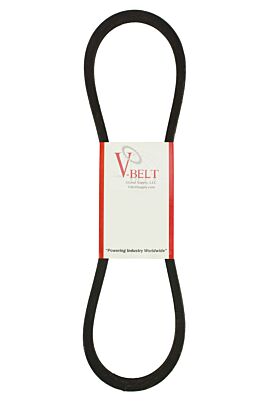

B20 Classic Belt

B/5L Belt Type X 5/8 Inch Top Width X 23 Inch Outside Diameter
Special Price $3.06 Regular Price $4.89

Commercial Discount Program

Unlock even better savings on this product!

Bronze $300 min/year spend
$2.75 10% Off
Silver $2,000 min/year spend
$2.45 20% Off
Gold $8,000 min/year spend
$2.26 26% Off
Platinum $25,000 min/year spend
$2.08 32% Off
Classic v-belts are just that, classic in design and application. The classic v-belt is the most tried and true style of v-belt in the market. Originally designed to replace leather belts in a variety of industries including agriculture, facility maintenance, lawn & garden and material handling. Also known as light duty v-belts, they are designed with a 40 degree angle to "wedge" the belt into the groove of the pulley. The greater the load, the greater the wedging action. The manufacturing process combines a rubber compound with a polyester cord to increase strength and stability. Most classic belts are also available in Kevlar. Conventional v-belt suitable for all standard industrial applications. Standard operating temperatures ranging from -1 degrees Fahrenheit through 158 degrees Fahrenheit. ISO:9001 Certified
More Information
Weight (lbs) 0.210000
Part Number B20
Thickness 3/8" (9.5mm)
Outside Diameter 23 inches (584.2mm)
Inside Length 20 Inches (508mm)
Certification ISO: 9001 Certified
Fitment N/A
Alternative Part Number(s) B 20 Classic v belt ***Sub to B 20/5L230*** Replacement belt for Dayco BP20 classic v-belt B20 B-20 A-B20 BTQ-B20 B20 D&D Power Drive
Model Information N/A
