Exercise Equipment V-Belts

Keep Every Machine Moving

A worn drive belt is one of the most common reasons a treadmill squeals, an elliptical slips, or an exercise bike loses resistance. The good news: it's also one of the most affordable repairs you can make. V-Belt Supply stocks a full range of exercise equipment V-belts so you can identify, order, and replace the right belt without waiting weeks for an overpriced OEM part.

Since 2009, we've helped homeowners, repair technicians, gyms, and fitness equipment shops find belts for exercise equipment of every brand and vintage, from a garage-sale exercise bike to a full commercial cardio floor.

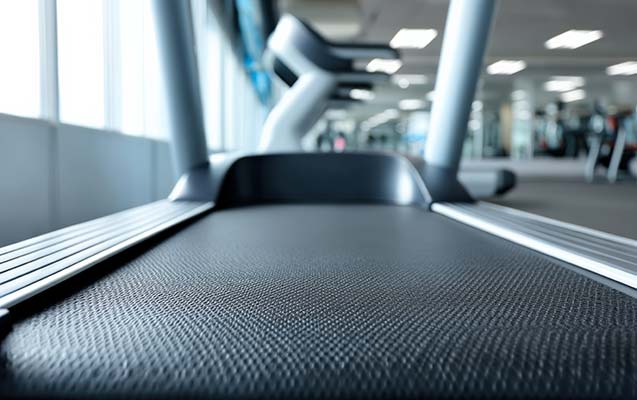

Treadmill Belts

Most home and light-commercial treadmills use a poly-V (micro-V/multi-rib) belt to connect the drive motor to the front roller. These show up under model numbers like PJ or J-series (e.g., 610J, 8PJ497, 125J6), referring to rib profile and rib count rather than a standard A/B/AX-type V-belt.

Poly V Belts - Micro V (J, K, L, M) J Series Poly V Belts

Exercise Bike Belts

Most recumbent and upright consumer bikes (BH Fitness, BladeZ, Life Fitness) mostly spec poly-V belts, same PJ-profile, rib-count, and length matching pattern as treadmills.

Poly V Belts - Micro V (J, K, L, M) K Series Poly V Belts J Series Poly V Belts

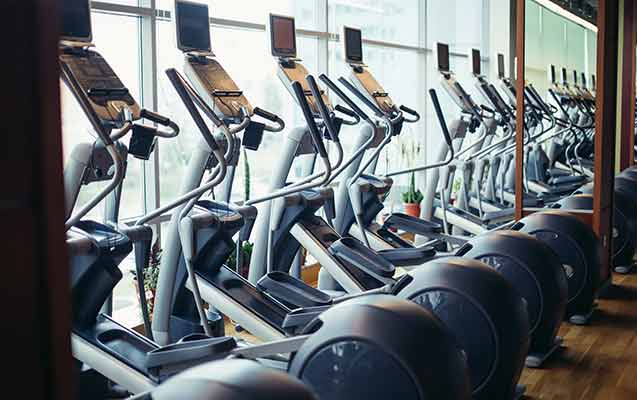

Elliptical Belts

Ellipticals follow the same pattern as treadmills and exercise bikes — poly-V (J-section/PJ) belts are the standard, connecting the pedal arms/flywheel assembly to the resistance/generator unit.

Poly V Belts - Micro V (J, K, L, M) J Series Poly V Belts

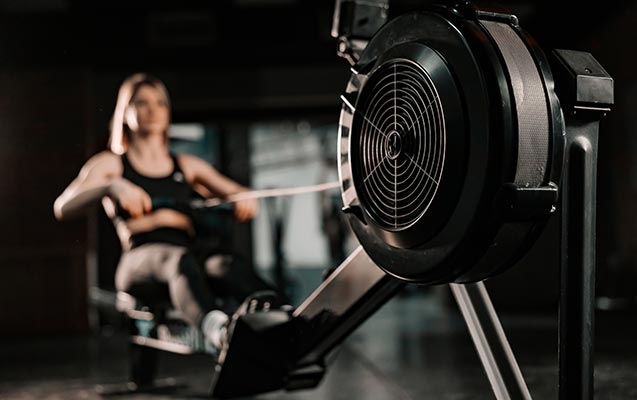

Rowing Machine Belts

Rowing machines follow the same poly-V (J-section) pattern as the rest of the cardio lineup—the same belt family and the same cross-reference logic.

Poly V Belts - Micro V (J, K, L, M) J Series Poly V Belts

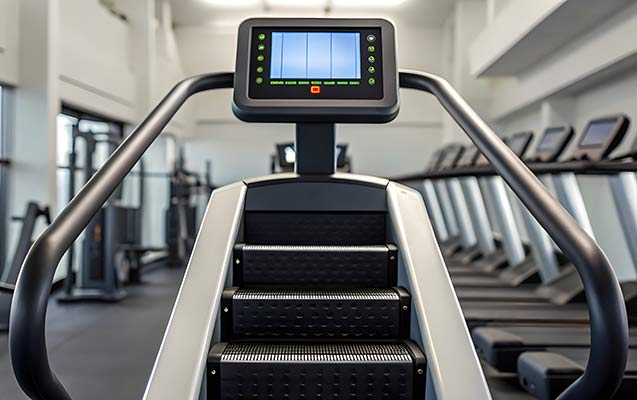

Stair Climber Belts

StairMaster, Star Trac, Matrix, and most steppers use a 6- to 10-rib poly-V belt connecting the step arms/pedal assembly to the resistance flywheel. Rib counts run a bit higher here than on treadmills (6–10 ribs common vs. 4–8 on treadmills). Unlike treadmills/bikes/ellipticals, steppers aren't 100% poly-V—there's a real toothed-belt minority worth flagging so customers check their belt style, not just assume poly-V.

Poly V Belts - Micro V (J, K, L, M) J Series Poly V Belts K Series Poly V Belts Standard Timing Belts (XL, L, H) XL Pitch Timing Belts

What We Carry

Our exercise equipment belts cover the drive systems found in nearly every type of fitness machine, including:

  • Treadmill drive belts

    The v-belt or ribbed belt that connects the motor to the front roller

  • Treadmill replacement belts

    Including multi-rib (poly-V) styles used on most modern motorized treadmills

  • Boiler room and pump equipment

    Circulation pumps and blowers

  • Elliptical and cross-trainer belts

    Smooth, quiet belts for flywheel-driven machines

  • Exercise bike and spin bike belts

    V-belts and ribbed belts for magnetic and friction-resistance bikes

  • Rowing machine and stair climber belts

    Durable replacements for high-cycle use

A quick note on treadmill belts: the wide walking surface is a flat belt, while the smaller belt under the motor hood is typically a V-belt or multi-rib belt. If your treadmill runs but the deck hesitates or chirps, the drive belt is usually the culprit, and that's exactly what you'll find in this category.

How to Identify the Right Belt

Most exercise V-belts can be matched in minutes:

  1. Check the belt itself. Many belts have a part number printed on the outer surface.
  2. Check the machine. Look for an OEM part number in the owner's manual or on the manufacturer's parts diagram.
  3. Measure it. Note the top width, outside circumference, and number of ribs (if applicable).

Not sure what you're looking at? Send us the make and model; our belt team cross-references thousands of OEM numbers for V-belts for exercise equipment daily and can point you to the correct replacement, big brand or obscure import.

For Repair Shops and Fitness Dealers

If you service or stock fitness equipment, a V-Belt Supply commercial account makes reordering simple. Commercial customers receive volume discounts, a dedicated account manager, and streamlined ordering for the belts you replace most, so a customer's down treadmill never waits on a part.

Why Order From V-Belt Supply

  • Extensive inventory of fitness and industrial belts, ready to ship
  • Real people who answer identification questions
  • Competitive pricing for single belts or bulk orders
  • Worldwide shipping from a small business that treats every order like it matters

Find your belt above, or contact our team, and we'll help you get your machine,  or your customers' machines, back in motion.
