One Belt, a Full Range of Speeds

Some machines need more than a single fixed speed, and that's what variable speed belts are built for. Wider and more flexible than a standard v-belt, a variable speed belt rides up and down in adjustable sheaves, letting a drill press, mower, or industrial variator shift speeds smoothly without swapping pulleys. V-Belt Supply stocks over 500 sizes from trusted brands, ready to ship worldwide.

What Makes Variable Speed Drive Belts Different

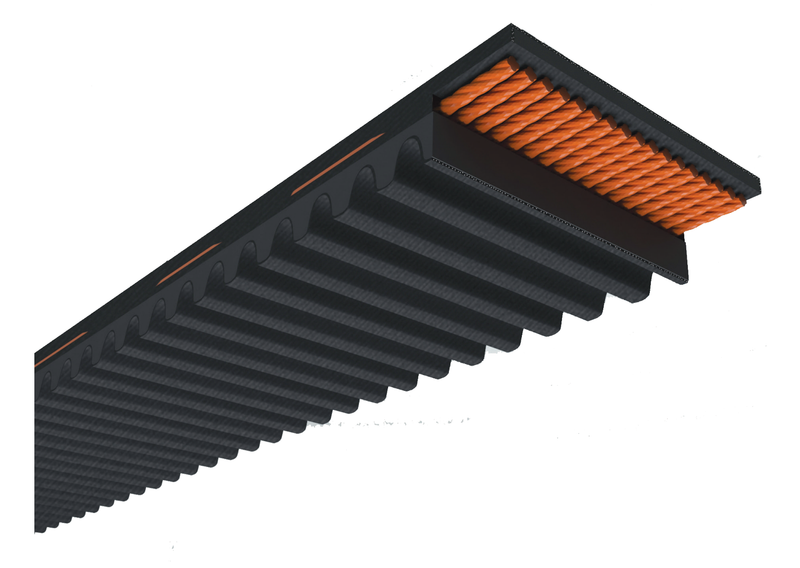

A variable speed drive belt has to do two jobs at once: grip the sheave faces under load and flex enough to change its running diameter on the fly. That's why these belts share a distinct construction:

  • Wide top width: Gives the belt a large speed range as it moves through the adjustable sheave
  • Cogged (notched) underside: Allows a wide belt to bend around small diameters without cracking
  • Rigid cross-section: Resists dishing and distortion as the sheave faces squeeze the belt
  • High-strength tension cords: Hold up to the constant flexing that variator drives demand

Because of that squeeze-and-flex duty cycle, variable speed drive belts wear differently than standard v-belts. Slipping speed control, a narrowing top surface, or cracked cogs are all signs it's time for a replacement.

Variable Speed V-Belts section 2 image

Common Variable Speed Belt Applications

You'll find these belts anywhere a machine changes speed mechanically instead of electronically:

  • Machine tools: Drill presses, milling machines, lathes, and grinders with vari-speed heads
  • Lawn and garden equipment: Riding mowers, zero-turns, and tillers with variable ground speed
  • Agricultural machinery: Combines, feeders, and harvesters with variator drives
  • Powersports and utility vehicles: Go-karts, snowmobiles, and UTV clutch systems
  • Industrial variators: Reeves-style drives on mixers, conveyors, and process equipment
  • HVAC and fans: Adjustable-speed blower drives
Variable Speed V-Belts section 4 image

How to Read Your Belt Number

If you're replacing a worn belt, variable speed part numbers are easier to decode than they look. Take 1930V485 as an example:

  1. First two digits (19) – top width in sixteenths of an inch, so 19/16" or about 1.19" wide
  2. Next two digits (30) – the sheave groove angle in degrees
  3. Digits after the V (485) – pitch length in tenths of an inch, so 48.5"

Search your number with no spaces, dashes, or quotes. If the printing has worn off, measure the top width and outside circumference, note the machine make and model, and call us at (888) 291-5450 or email [email protected]. Our team cross-references OEM and multi-speed belt numbers every day and will confirm the correct size before you order.

One replacement tip: when a variable speed belt fails early, inspect the sheave faces. Glazed, grooved, or rusted faces chew through new belts quickly, and a few minutes with emery cloth can add months of belt life.

For Shops, Dealers, and Maintenance Teams

If you repair equipment or stock belts for customers, a V-Belt Supply commercial account gives you volume discounts, a dedicated account manager, and quick reordering on your fastest-moving sizes. Keep the belts your customers need on the shelf without tying up your day in sourcing.

Browse the full selection of variable-speed V-belts, or reach out to our belt team; we'll help you match the right belt for the job.
