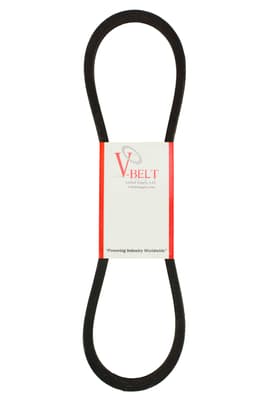

E195 Classic Belt
E Belt Type X 1 1/2 Inch Top Width X 201 Inch Outside Diameter
Special Price
$77.37
Regular Price
$115.02
Classic v-belts are just that, classic in design and application. The classic v-belt is the most tried and true style of v-belt in the market. Originally designed to replace leather belts in a variety of industries including agriculture, oilfield supply, material handling and mud pumping. E section belts are for heavy duty applications and they are designed with a 40 degree angle to "wedge" the belt into the groove of the pulley. The greater the load, the greater the wedging action. The manufacturing process combines a rubber compound with a polyester cord to increase strength and stability.
Conventional v-belt suitable for all standard industrial applications. Standard operating temperatures ranging from -1 degrees Fahrenheit through 158 degrees Fahrenheit.
ISO:9001 Certified
Conventional v-belt suitable for all standard industrial applications. Standard operating temperatures ranging from -1 degrees Fahrenheit through 158 degrees Fahrenheit.
ISO:9001 Certified
| SKU | AAB5&103 |
|---|---|
| Weight (lbs) | 9.710000 |
| Part Number | E195 |
| Thickness | 29/32" (23mm) |
| Outside Diameter | 201 inches (5105.4mm) |
| Inside Length | 195 Inches (4953mm) |
| Certification | ISO: 9001 Certified |
| Fitment | N/A |
| Alternative Part Number(s) | E 195 Classic V-Belt Replacement belt for Dayco EP195 classic v-belt E195 E-195 E195 D&D Power Drive |
| Model Information | N/A |
