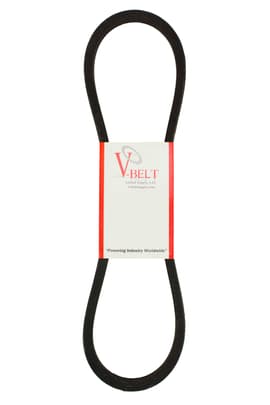

A28.5 Classic Belt

A/4L Belt Type X 1/2 Inch Top Width X 30.5 Inch Outside Diameter
Special Price $1.65 Regular Price $2.24
Classic v-belts are just that, classic in design and application. The classic v-belt is the most tried and true style of v-belt in the market. Originally designed to replace leather belts in a variety of industries including agriculture, facility maintenance, heating ventalation and air conditioning (HVAC) and material handling. Also known as light duty v-belts, they are designed with a 40Ì° angle to "wedge" the belt into the groove of the pulley. The greater the load, the greater the wedging action. The manufacturing process combines a rubber compound with a polyester cord to increase strength and stability. Most classic belts are also available in Kevlar.

Conventional v-belt suitable for all standard industrial applications. Standard operating temperatures ranging from -1Ì° F through 158Ì° F.
ISO:9001 Certified
More Information
SKU AAB1&125
Weight (lbs) 0.170000
Part Number A28.5
Thickness 5/16" (7.9mm)
Outside Diameter 30.5 inches (774.7mm)
Inside Length 28.5 Inches (723.9mm)
Certification ISO: 9001 Certified
Fitment Wacker Plate Contractor
Alternative Part Number(s) Part Number:
A28.5
A 28.5
A-28.5
4L305
4L-305
Dimensions:
1/2" Top Width X 30.5" Outside Measurement
Model Information N/A
